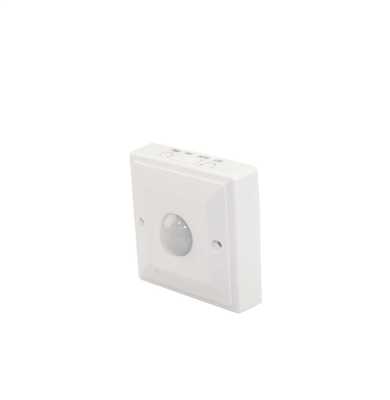

PIR Occupancy Sensor Wall Mount 3 Wire

Part Code PMWS

Key Features

  • 3 wire connection ( live, neutral, switch live )
  • 110° detection angle
  • 10m detection range @ 1.8m mounting height
  • Auto / off control switch
  • Time adjustments 10 seconds up to 40 mins
  • Lux adjustments 5-1000 lux
  • Switch rating of 2000W incandescent or 600W fluorescent
  • Up to 2000W

Specification

Available Options
2 wire version also available
Colour
White
Depth
35mm
Detection Angle
110°
Detection Range
10m
Dimensions
(H)85 mm x (W)85 mm x (D)35 mm
Guarantee
1 Year
Height
85mm
IP Rating
IP44
Logistics Partner
NONE
Lux Adjustment
Yes
Maximum Switching Load
Incandescent - 2000W Mains Halogen - 1000W Low Voltage Halogen - 600W Fluorescent (uncompensated) - 600W LED - 150W Energy Saving - 120W
Mounting
Wall
Mounting Height
1.8m
Number Of Wire Connections
3
Packaging Types
Each
Remote Control
No
Similar Stock
No
Similar Stock Code
LTC-LSOS-3WIRE-WHI
Timer Adjustment
10 Secs - 40 Mins
Type
3 Wire Occupancy Sensors
Unspsc V13
39122236
Unspsc V18
39122236
Unspsc V22
39122236
Unspsc V24
39122236
Voltage Rating
230V
Weight
0.1516kg
Width
85mm
