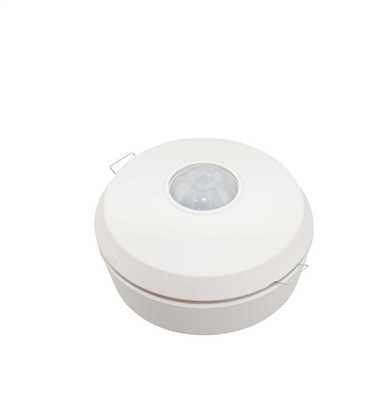

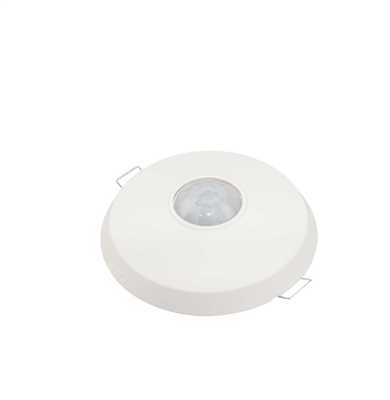

PIR Occupancy Sensor Ceiling Mount Flush & Surface

Part Code PMSCFS7

Key Features

  • Surface base and spring clamps for flush mount supplied
  • Incandescent, halogen, fluorescent, LED and energy saving loads
  • Auto learn function
  • Manual On/Off override via push button
  • 7m detection rang @ 2.5m height
  • 10 - 2000 lux adjustment
  • IP44 (surface mount with junction box)
  • IP20 (flush mount with spring clip or European standard junction box)
  • This product is no longer available to order online - Please check local Store for stock

Specification

Colour
White
Cut Out
55mm
Depth
40mm
Detection Angle
360°
Detection Range
7m
Diameter
111.5mm
Dimensions
(Dia)111.5 mm x (H)59 mm x (D)40 mm
Guarantee
1 Year
Height
59mm
IP Rating
IP20
Logistics Partner
NONE
Lux Adjustment
Yes
Maximum Switching Load
Incandescent - 1000w, Mains halogen - 500w, LV halogen - 200w, Fluorescent (uncompensated) - 250w, LED - 300w, Energy saving - 300w,
Mounting
Ceiling
Mounting Height
2.2m
Number Of Wire Connections
3
Obsolete Iso
2020-06-15
Packaging Types
Each
Remote Control
No
Similar Stock
No
Timer Adjustment
3 sec - 40 min
Type
Occupancy Sensor
Unspsc V13
39122236
Unspsc V18
39122236
Unspsc V22
39122236
Unspsc V24
39122236
Voltage Rating
230V
Weight
0.2706kg
