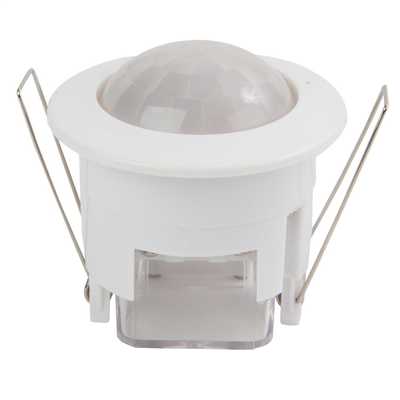

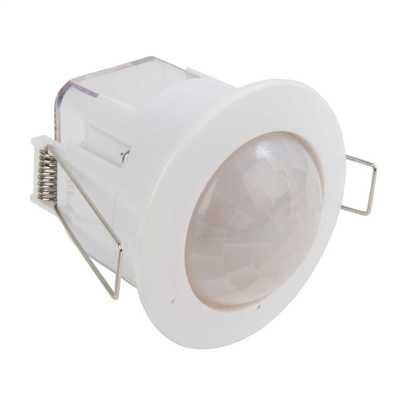

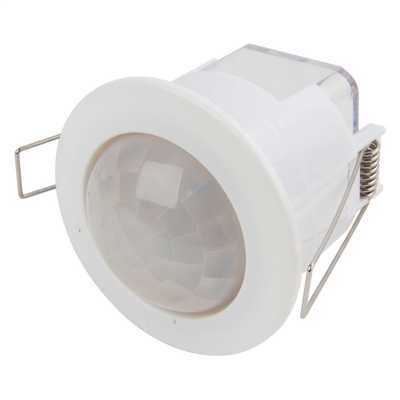

PIR Movement Sensor Ceiling Mount Flush

Part Code PMSCF

Key Features

  • Max. 2000W incandescent bulb (resister-load) or 600W fluorescent load, LED 60W-200W (depends on different quantity LED driver)

Specification

Cut Out
63.5mm
Depth
70mm
Detection Angle
360°
Detection Range
4.5m
Diameter
75mm
Dimensions
(Dia)75 mm x (D)70 mm
Guarantee
1 Year
Logistics Partner
NONE
Maximum Switching Load
Incandescent - 2000w, Mains halogen - 1000w, LV halogen - 600w, Fluorescent (uncompensated) - 600w, LED - 200w, Energy saving - 200w,
Mounting
Ceiling
Mounting Height
2.8m
Packaging Types
Each
Remote Control
No
Similar Stock
No
Similar Stock Code
LTC-CFMS-U500L-WHI
Timer Adjustment
10 sec - 30 mins
Unspsc V13
39122236
Unspsc V18
39122236
Unspsc V22
39122236
Unspsc V24
39122236
Voltage Rating
230V
Weight
0.3674kg
