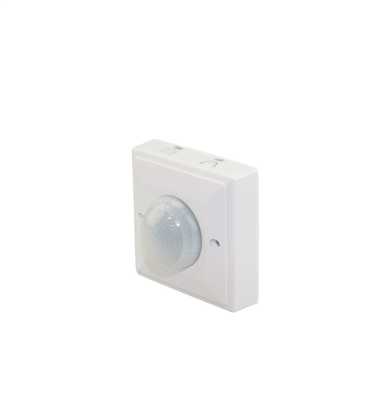

PIR Occupancy Sensor Ceiling Mount

Part Code PMCS6

Key Features

  • 360° @ 2.5m height detection angle
  • 6m detection radius @ 2.5m mounting height
  • Lux adjustments 30 - 200 lux
  • Ceiling mounting height : 2.2 - 3m
  • Up to 2000W
  • Incandescent, halogen, fluorescent, LED and energy saving loads
  • 3 wire ( live, neutral, switch live )
  • Surface mounting 1 Gang box

Specification

Colour
White
Depth
55mm
Detection Angle
360°
Detection Range
6m
Dimensions
(H)85 mm x (W)85 mm x (D)55 mm
Guarantee
1 Year
Height
85mm
IP Rating
IP44
Logistics Partner
NONE
Lux Adjustment
Yes
Maximum Switching Load
Incandescent - 2000w, Mains Halogen - 2000w, LV Halogen - 600W, Fluorescent (uncompensated) - 600W, LED - 200W, Energy Saving - 200W,
Mounting
Ceiling
Mounting Height
2.2m
Number Of Wire Connections
3
Packaging Types
Each
Remote Control
No
Sensor
PIR
Similar Stock
No
Similar Stock Code
LTC-CSMS-U500L-WHI
Timer Adjustment
5 secs - 40 mins
Type
Luxomat Occupancy Sensors
Unspsc V13
39122236
Unspsc V18
39122236
Unspsc V22
39122236
Unspsc V24
39122236
Voltage Rating
230V
Weight
0.1621kg
Width
85mm
